Seamlessly connect it to your stereo system to stream music, radio, podcasts, and personal libraries from popular services. The NODE comes equipped with HDMI eARC, Dolby Digital decoding, and Apple AirPlay 2, making it the core of your home audio system. Plus, it integrates wirelessly with Bluesound Players for a multi-room experience across your home.
Key Features:
- ESS ES9039Q2M SABRE® DAC
- Quad-core 1.8GHz ARM® Cortex™ A53 processor
- THX AAA™ headphone amplifier technology
- Full-sized 1/4″ (6.3mm) headphone output
- HDMI eARC, Optical inputs
- Dirac Live Ready*
- Five programmable quick-touch presets
- User interface with proximity sensor
- AirPlay 2 integration
- Spotify Connect + TIDAL Connect
*Available via future software update.
Better down to every sonic detail
The NODE is engineered to deliver precise sound with an improved ESS SABRE® DAC (ES9039Q2M) and audiophile-grade circuitry that minimizes jitter and interference. Experience clean, clear audio that captures every detail of your music, delivered through your favorite amp or powered speakers.
Your music and more
Stream everything in the highest quality via the BluOS app, which gives you control over popular streaming services and personal music libraries in HD quality. With Apple AirPlay 2 and aptX Adaptive Bluetooth®* built-in, you have access to even more music and apps.
Go beyond the HiFi system
The NODE lets you wirelessly connect to Bluesound speakers and stereo components, creating an immersive multi-room system. Powered and controlled by BluOS, it ensures HiFi-quality sound throughout the home, supported by dual-band Wi-Fi and gigabit ethernet for uninterrupted streaming.
World-class headphone technology
Enjoy lifelike sound with THX AAA™ headphone technology, known for its linear response and minimal distortion. Plug in your high-performance headphones via the 1/4" jack and experience audiophile-grade audio.

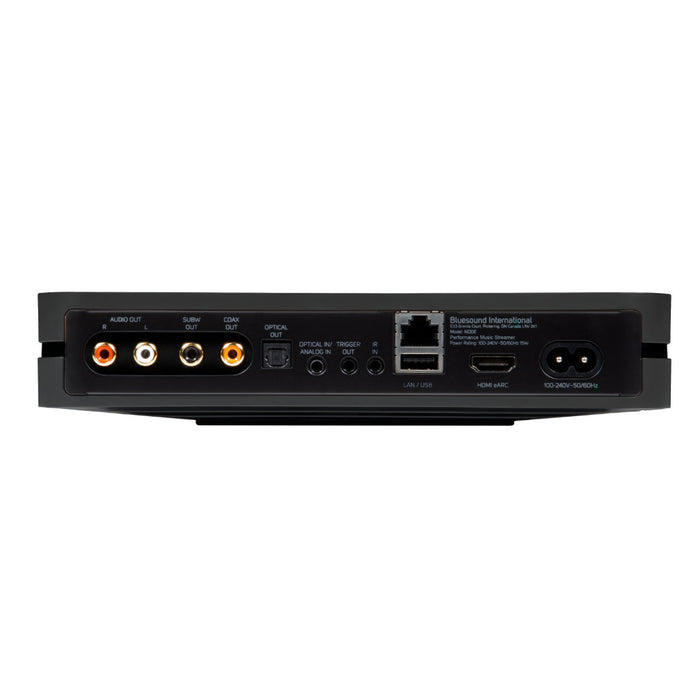

Connect everything
The NODE offers a wide range of digital and analog inputs/outputs, making it highly versatile in any setup. Use Stereo RCA, Optical, USB, and more for seamless integration. The built-in HDMI eARC port connects to your TV, and with IR learning, you can control everything with any remote. Program up to five presets with the proximity-sensing touch panel for quick access to your favorite sources.
Smart acoustics
Upgrade to Dirac Live Room Correction* to leverage advanced room calibration technology that measures room acoustics and eliminates unwanted distortions like standing waves and reverberations. A high-sensitivity microphone (sold separately) from Bluesound is required for this calibration kit.
Specifications
Audio:
-
Supported Audio File Formats: MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
-
Native Sampling Rates: up to 192 kHz
-
Signal-to-Noise Ratio: -118 dB
-
Supported High-Quality Audio File Formats: FLAC, MQA, WAV, AIFF, MPEG-4 SLS
-
Bit Depth: 16-24
-
Distortion: THD+N, 0.0007%
-
DSD Support: DSD256 (via future BluOS update)
-
Audio Controls & EQ: BluOS Controller App
-
Headphone Continuous Output Power: 160mW, 16Ω / 230mW, 32Ω / 53mW, 250Ω / 22mW, 600Ω
-
Supported Multi-Channel Audio Formats: Dolby Digital®
-
DAC: ESS ES9039Q2M
Software & Integrations
-
Operating System: BluOS
-
Supported Network File Sharing: Server Message Block (SMB), up to 200,000 files
-
3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready
-
App Controller OS: iOS, Android, Windows, macOS
-
Album Art Supported: JPG, PNG
-
Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron
-
Processor: ARM® Cortex™-A53, Quad-Core, 1.8GHz per core
-
Music Services & Internet Radio: 23+ Music Services, Internet Radio
-
Voice Control Integrations: Amazon Alexa Skills
Connections:
-
Power Supply: Universal bi-pin AC cord input (100-240AC)
-
Optical/Analog Input: Combo - Mini TOSLINK/Stereo 3.5mm
-
Coaxial Output: RCA
-
Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps
-
IR Input: 3.5mm Jack
-
Optical Output: TOSLINK digital optical
-
Wi-Fi Built In: Wi-Fi 5 (802.11ac), dual-band
-
HDMI Input: HDMI eARC
-
Trigger Out: 12 Volt
-
Bluetooth Quality: Bluetooth 5.2 aptX Adaptive
-
USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode
-
Headphone Output: 6.3mm Stereo; Bluetooth
-
Bluetooth Connectivity: Two-Way (transmit & receive)
-
Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)
-
Subwoofer Output: RCA x 1; Wireless to PULSE SUB+
-
IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning
User Interface & Controls:
-
Status Indicator: LED x 2
-
Volume Control Buttons: Touch Slider LED
-
Proximity Sensor: Yes
-
Play/Pause Button: Touch LED
-
Preset Buttons: Touch LED x 5
General:
-
Product Dimensions: 220 x 46 x 146 mm (W x H x D); 8.7 x 1.8 x 5.7 in (W x H x D)*
-
Included Accessories: 120V AC Power Cord, 230V AC Power Cord, Stereo RCA to RCA Cable, Ethernet Cable, Mini Jack to Toslink Adapter, Safety/Warranty Guide, Quick Setup Guide, Dirac Live Ready Info Card
-
Storage Environment: -10°C to 50°C, 20% to 80% relative humidity
-
Product Weight: 1.09kg
